Descriere
Scaner de diagnosticare de înaltă calitate USB modificat OBD2 ELM327 pentru Ford MS-CAN HS-CAN Mazda Forscan
SPECIFICAȚII
Marcă: FORSCAN
Certificare: Niciuna
Electronic: Nu
Certificare testare externă: Niciuna
Versiune hardware: USB ELM327
Substanță chimică extrem de periculoasă: Niciuna
Baterii incluse: Nu
Înălțimea articolului: 2,2.5cm
Lungimea articolului: 12,8.8cm
Tip articol: Cabluri și conectori de diagnosticare auto
Greutatea articolului: 0.11
Lățimea articolului: 3,4.6cm
Material: Plastic
Nume model: /
NR. OEM: /
Putere (W): /
Actualizare software: Nu
Versiune software: USB ELM327
Utilizare: Nu pentru telecomunicații
Tensiune: 12V
Technical Details:
1.Latest ELM327 version for greater F.o.r.d compatibility

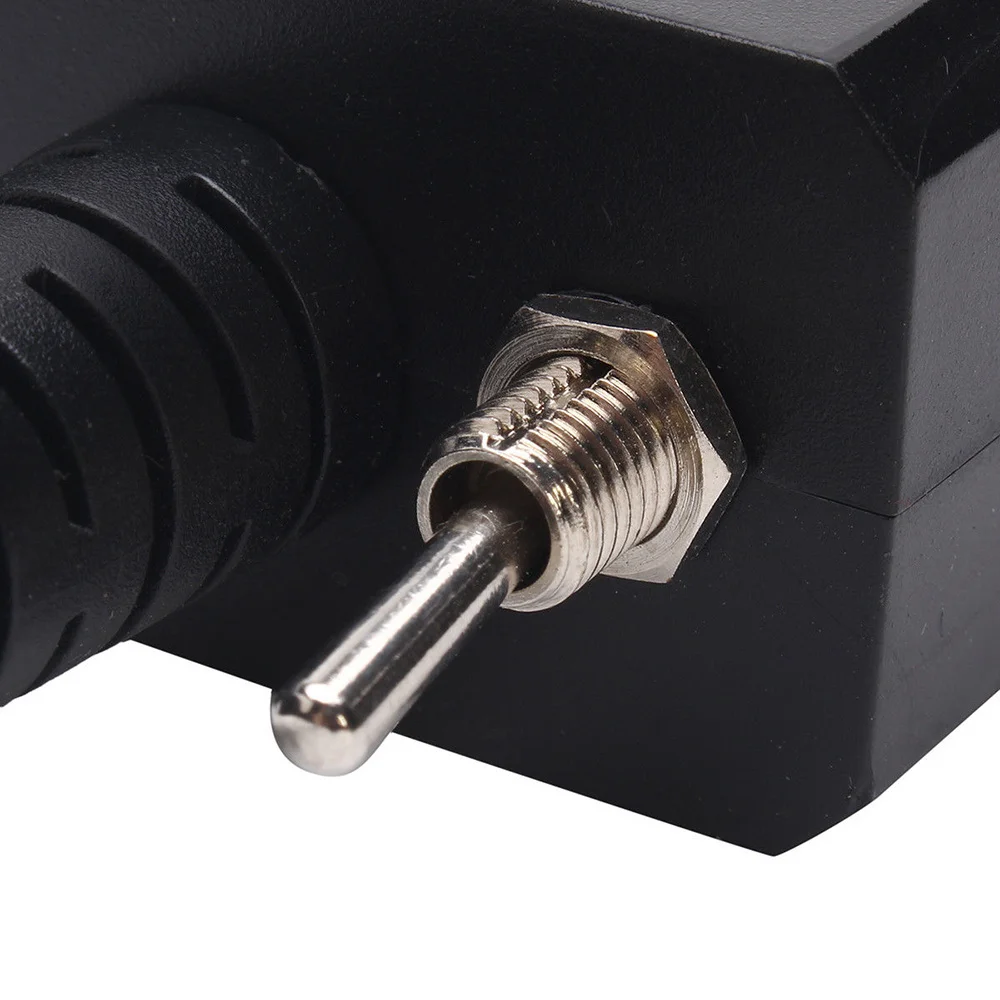

2.Manufactured modification to include a switch to connect to different CAN buses
3.Designed for FORScan software
4.Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more 4MS CAN bus and HS CAN bus support 5Drivers and instructions included
Product Introduction:

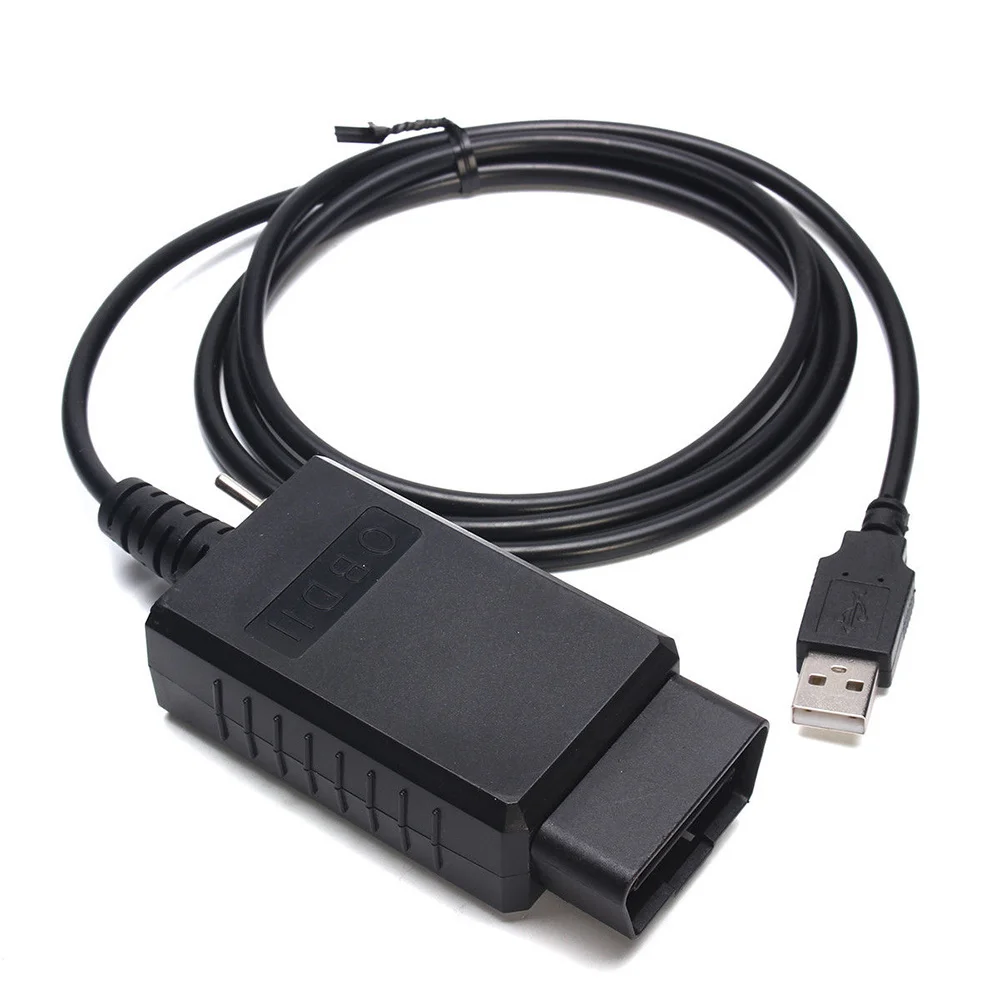

One ELM327 OBDII OBD2 USB with switch. Designed for communicating with F.o.r.d, for Mazda, for Lincoln and for Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular
OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.
Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Switch position one: HS CAN – Occupies pins 6 and 14
Switch position two: MS CAN – Occupies pins 3 and 11
FORScan
Elmconfig
FoCCCus
FF2
Plus more
Please note that many F.o.r.d and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN
is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

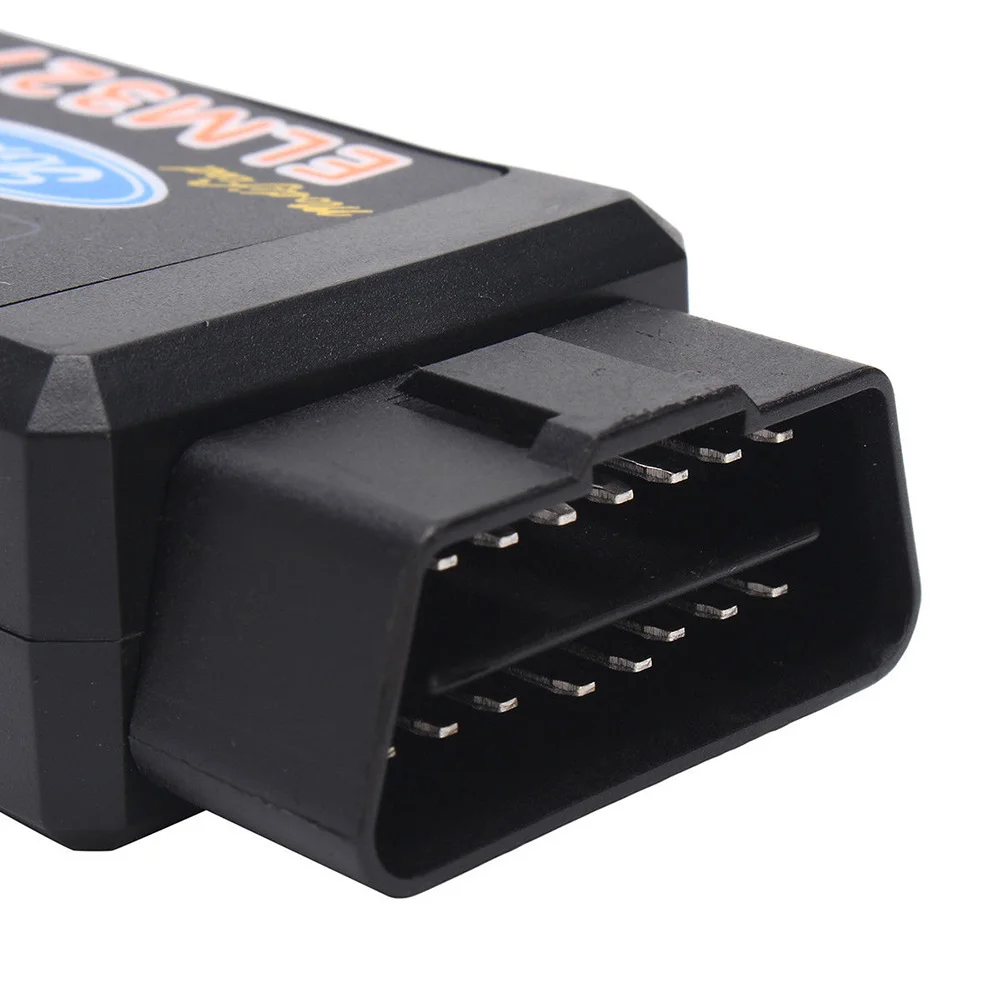

ELM327 supports HS CAN from the stock, because for Ford HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
All for Ford, for Mazda, for Lincoln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.
Supported Protocols:
for FORD HS CAN
for FORD MS CAN
Other Details:
Cables fully tested on supported model before shipping.
No responsibility can be accepted for any damage caused by the lead.

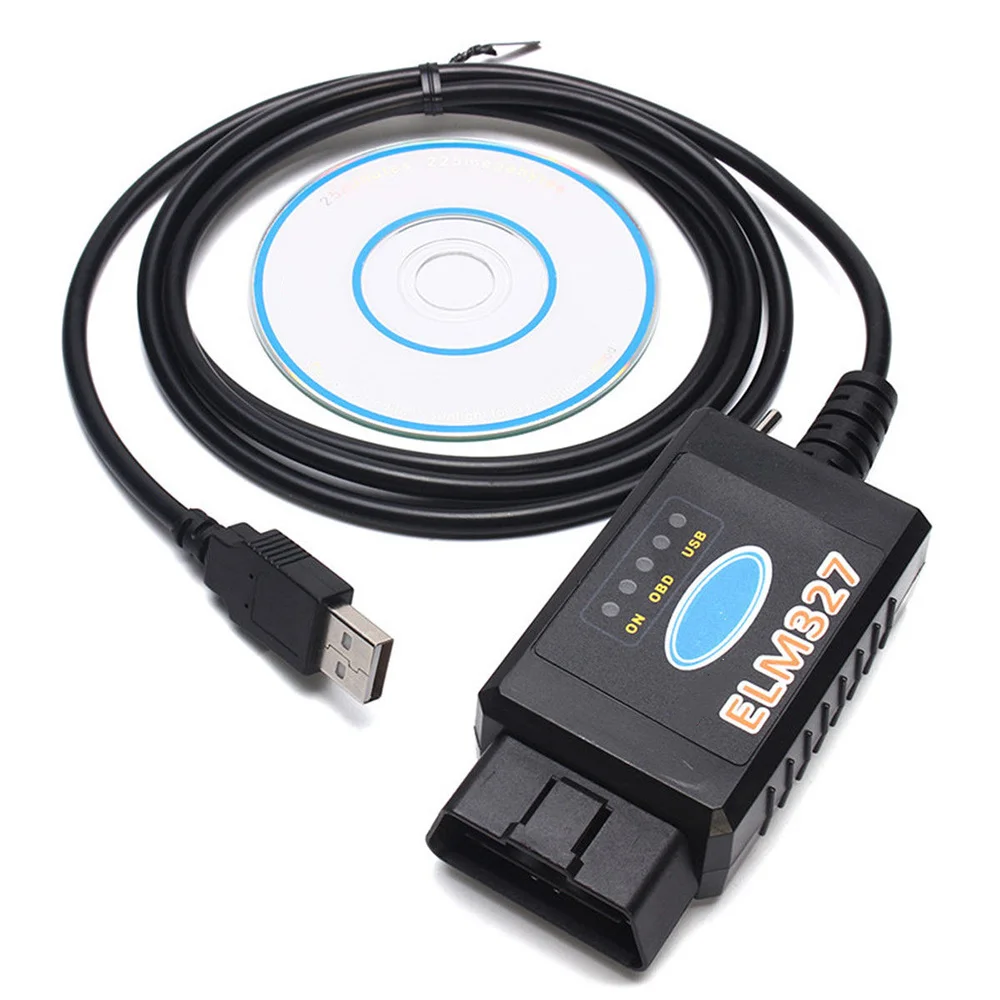

1 * ELM327 OBD2 bluetooth diagnostic interface
1X CD
